Grid Card

The Grid card allows you to show multiple cards in a grid. It will first fill the columns, automatically adding new rows as needed.

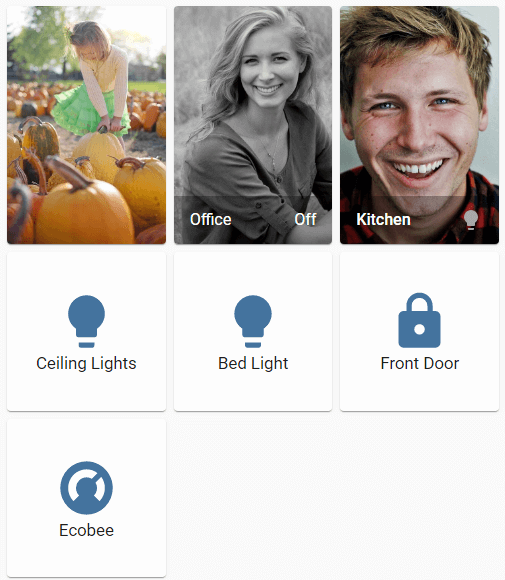

Screenshot of the grid card Screenshot of the Grid card.

To add the Grid card to your user interface, click the menu (three dots at the top right of the screen) and then Edit Dashboard. Click the Add Card button in the bottom right corner and select from the card picker.

All options for this card can be configured via the user interface.

YAML Configuration

The following YAML options are available when you use YAML mode or just prefer to use YAML in the Code Editor in the UI.

Configuration Variables

Looking for your configuration file?
type string Required

grid

title string (Optional)

Title of grid.

square boolean (Optional, default: true)

Should the cards be shown square.

columns integer (Optional, default: 3)

Number of columns in the grid.

cards list Required

List of cards.

Examples

Basic example:

type: grid
cards:
  - type: picture-entity
    entity: camera.demo_camera
    show_info: false
  - type: entities
    entities:
      - binary_sensor.movement_backyard

Defining columns and disabling the square option:

type: grid
title: Backyard
columns: 2
square: false
cards:
  - type: picture-entity
    entity: group.all_lights
    image:  /local/house.png
  - type: horizontal-stack
    cards:
      - type: picture-entity
        entity: light.ceiling_lights
        image: /local/bed_1.png
      - type: picture-entity
        entity: light.bed_light
        image: /local/bed_2.png
